Fig. 8


Download original image

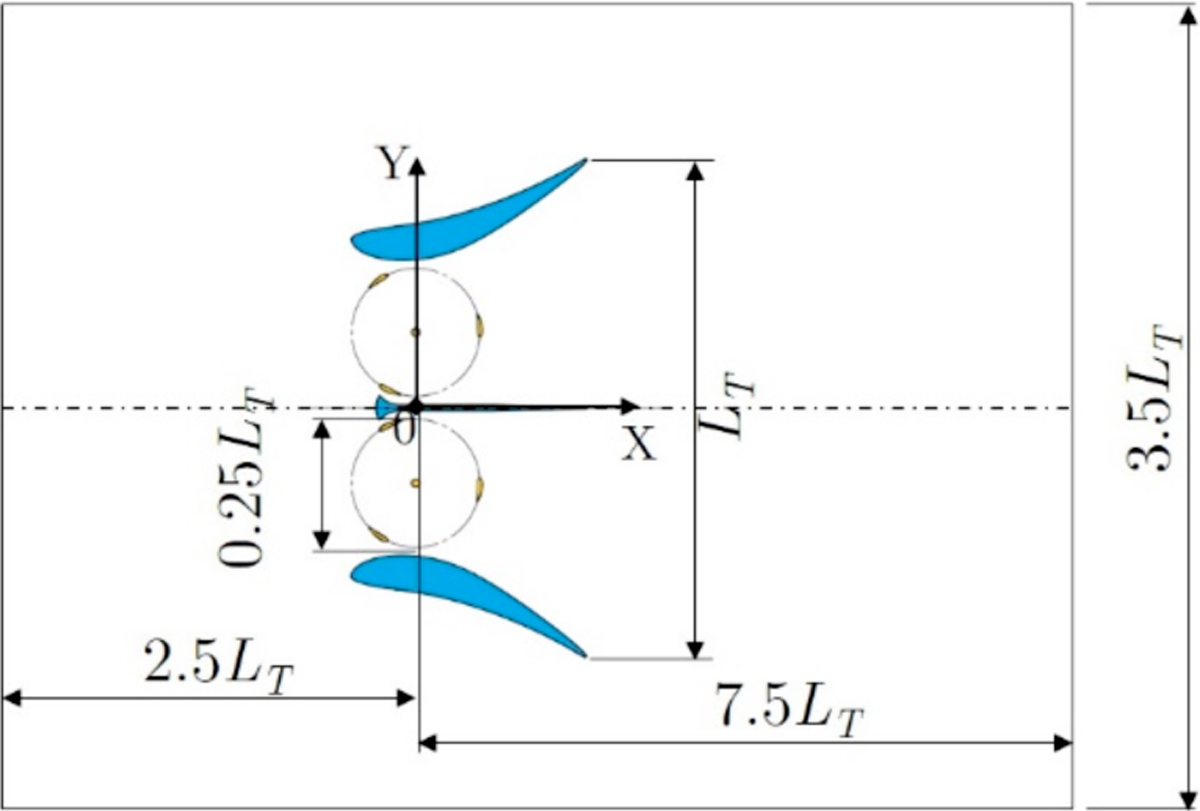

Isolated HPS in a channel. Overview of the 2D computational domain. The computational mesh of the sole rotor region contains 110,000 cells while the remainder of the domain, outside the rotor region, contains about 135,000 cells resulting in a total number of cells approximately equal to 245,000.
